FRACTAL
Offset smokers, evolved
The Fractal range of offset smokers represents our vision of the ultimate at-home or small-scale commercial pit, with two distinct models.

They have been designed from the ground-up to solve a host of issues that commonly affect smaller offsets.

Both the larger Fractal 140 and Fractal 90 deliver results unlike any other pits in their class.

MATERIALS
Primarily constructed from laser-cut 8mm and 10mm steel, with optional extra-heavy duty 10mm thick 304 stainless steel grill grates, the Fractal range shares the same apocalypse-proof construction as our flagship Terraton 200. This extreme build quality equates to stable and consistent cooking temperatures compared to mass-produced pits made of thinner material.
​
Our pits are weatherproofed with a polymerized linseed oil coating, which will not flake and degrade over time like paint. The rust-proof coating can be maintained indefinitely with a light coat of oil as needed. Bolts, washers, and other hardware components are made from stainless steel to further ensure longevity.

DUAL-FLOW
Traditional-flow or reverse-flow? Enter: Dual-Flow. A common issue with smaller offsets is the reduced usable grill grate area caused by a combination of intense radiant heat from the firebox coupled with a smaller air volume.

With the Fractal's dual-flow internal airflow routing system, the choice is yours how smoke and hot air interact with your food – whether from above grate level for enhanced bark formation, fat rendering, and even temperatures, or below grate level for a more traditional cooking experience, or mix it up with a balanced blend of both depending on the scenario.

In short, the dual-flow system unlocks the full potential of smaller offset smokers and avoids the drawbacks of other setups.

CERAMIC FIBRE INSULATION
Two inches of ceramic fibre, rated to withstand temperatures of up to 2600°F, are sandwiched between the 8mm steel inner and outer surfaces of the firebox, as well as the firebox door and the entire rear wall of the firebox.
​
Due to the extensive levels of insulation, less wood is consumed during a cook, newly added splits catch fire quickly, and splits burn with minimum smouldering, producing the cleanest flavour.

Non-insulated fireboxes are prone to developing rust due to the blistering exterior surface temperatures. In contrast, the fireboxes of the Fractal range are warm to the touch during operation, making them a much safer choice in a home setting.

HEAVY-DUTY COOKING GRATES
Traditionally, offset smokers come with expanded mesh cooking grates that can be challenging to maintain and may wear out over time.
​
In contrast, all Fractal models feature laser-cut high-airflow 6mm carbon-steel grates as standard, with the option to upgrade to 10mm diameter round 304-grade stainless steel grates, encased within heavy-duty laser-cut stainless steel frames.

Both cooking grate types are specifically designed to resist warping and wear compared to cheaper grates found on most pits.

XL FIREBOX &
DUAL AIRFLOW INTAKES
Heat distribution and airflow path options and have been optimised throughout using advanced computer simulation and rigorous multivariate analysis.

To assist with the transfer of heat from the insulated firebox to the cooking chamber, upper airflow intakes have been added to allow for increased draw/low airflow restriction without the side effect of excessively increasing overall pit temperatures.

Coupled with the extra large firebox and firebox door for easy access to the live fire, the dual airflow intakes are another game changing feature of the Fractal range.

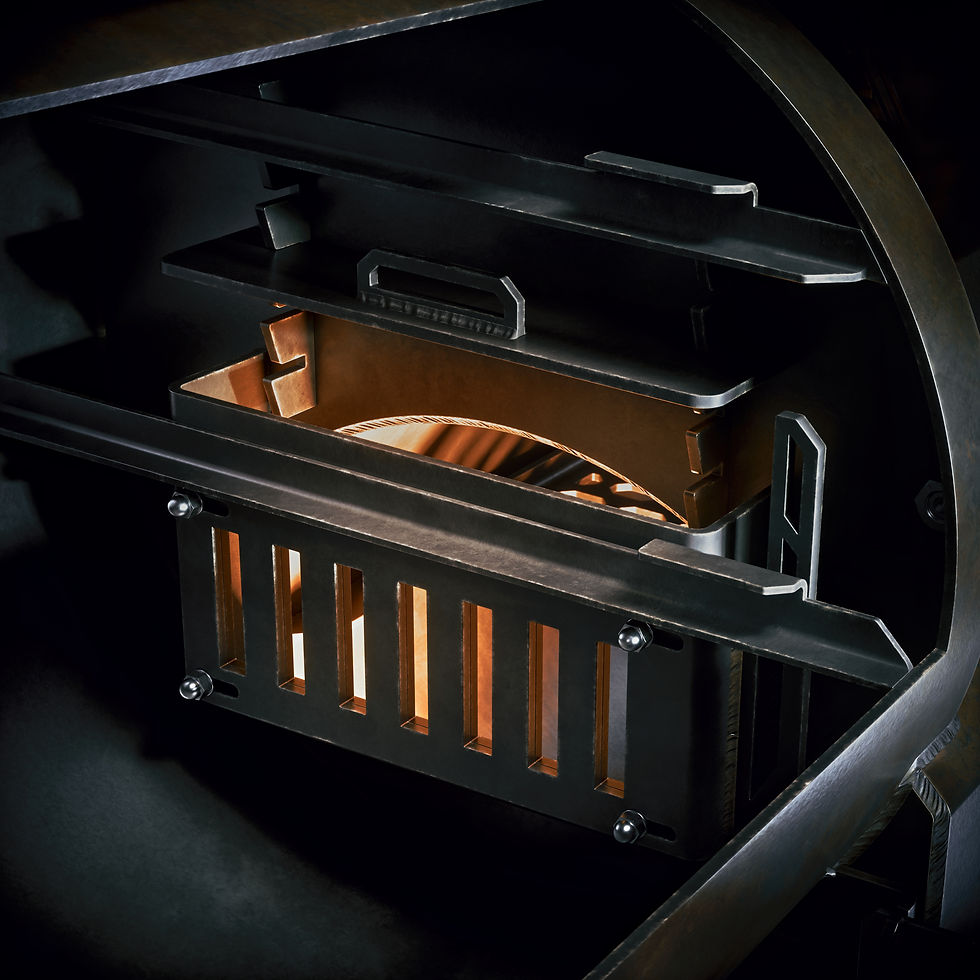

MATERIA: SUPERIOR FIRE MANAGEMENT
The optional Materia fire management baskets are designed to make maintaining a live wood fire easier and extend the life of the firebox.

It is constructed entirely from laser-cut 10mm thick steel plate and features a removable bottom grate for easy ash cleanout. Due to the exceptional construction, the baskets are able to resist extreme temperatures without deteriorating over time.

WHEEL OPTIONS
​The Fractal 90 features four ultra-heavy-duty 200mm castors with cast iron cores and a hard-wearing polyurethane tread, rated to withstand a combined load of 1800kg. The two front swivel castors have locking brakes, while the rear two are fixed to the chassis for stability.
​
The Fractal 140 is supported by four rugged 4-ply 500mm wheels rated to 1800kg, with steel centres for worry-free all-terrain operation as standard.
​
An ATV chassis option is also available for the Fractal 90.

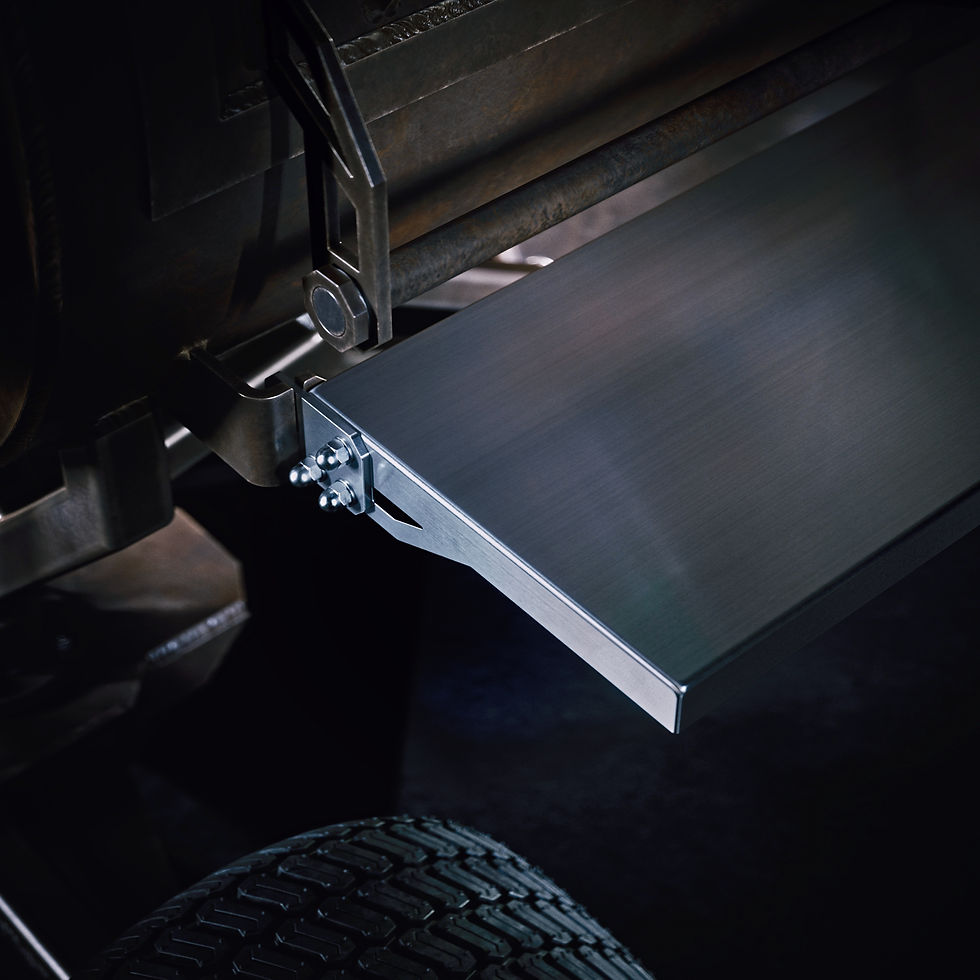

SHELVING, STORAGE & ACCESORIES
Each pit features a heavy-duty fixed storage shelf underneath the cooking chamber. Additionally, you can opt to include the removable large side shelf for the Fractal 140, or a folding side shelf for the Fractal 90. Both side shelves are made out of robust 2mm thick 304 stainless steel.
​
Also available are our 8mm thick stainless steel grill grate scrapers, a significant upgrade over potentially hazardous wire brush scrapers.
​
In addition, you can also choose to include a slide-in 8mm thick firebox grate for the ultimate wood-fired sear.

PRICING: FRACTAL 90
Tailor your pit with a choice of high-quality upgrades for the ultimate at-home smoking experience, with prices starting from £4150.
​​
Upgrades:
​
Heavy-Duty 10mm Round Bar 304 Stainless Steel Cooking Grates: £249.99
Off-Road Chassis with High-Spec ATV Wheels: £549.99
Stainless Steel Main Shelf: £139.99
Small Materia Fire Basket: £164.99
Heavy Duty Grill Grate Scraper: £64.99
Firebox Searing Grate: £64.99​
Heavyweight Waterproof Cover (610gsm black heat welded PVC): £239.99
For a signature touch, please contact us to discuss bespoke customisation options.

Get your build started with a £550 deposit.

​Please note that delivery is priced base on location.
